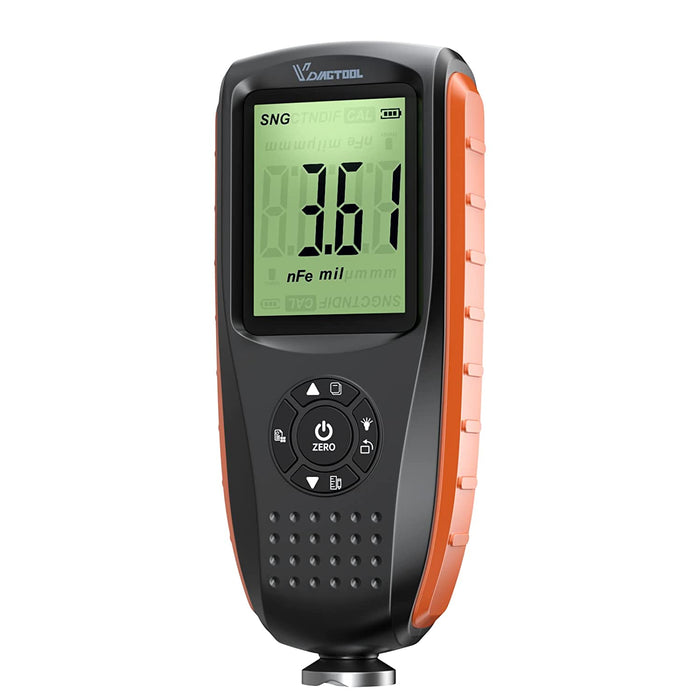

VDIAGTOOL VC200 Digital Coating Thickness Gauge, Car Paint Metal Coating Probe Tester

Original price $59.99 - Original price $59.99
Original price
$59.99 - $59.99
Current price $59.99
in stock, ready to be shipped

💰Limited Offer💰

5% OFF Discount Code "XTOOL"


whatsapp: +1 619-988-993
Any problems, email here:, don't send wrong place.



Return: Return for refund within 30 days,buyer pays return shipping. Read detail

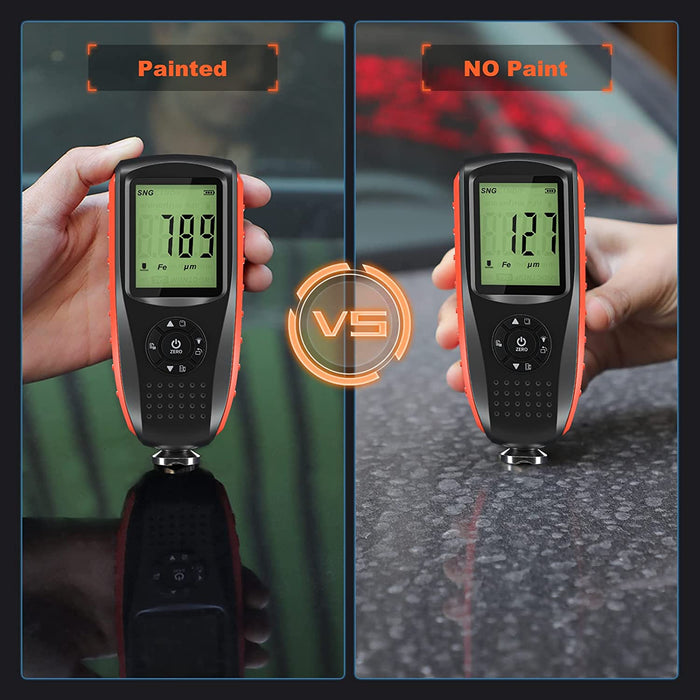

VDIAGTOOL VC200 Digital Coating Thickness Gauge, Car Paint Metal Coating Probe Tester. It's used to measure the thickness of Non-Metallic Coating (such as paint, film, etc.) on metal substrate quickly, non-destructively, and accurately. It is mainly used to measure the thickness of the vehicle's surface paint and other coatings. Help second-hand car buyers to evaluate car accidents. VC200 car paint thickness probe is powered by a built-in rechargeable lithium battery, is an upgraded version of VC100, and features with 180° rotated screen and 3 measurement modes. If any questions, please reach out to

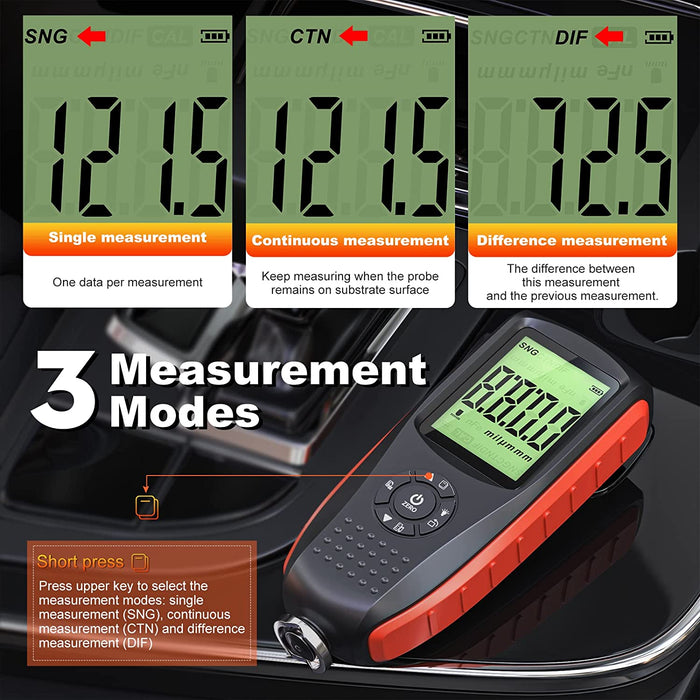

  • Single/Continuous/Difference Measurement
    Single measurement (SNG): One data per measurement
    Continuous measurement (CTN): Keep measuring when the probe remains on the substrate surface
    Difference measurement (DIF): The difference between this measurement and the previous measurement

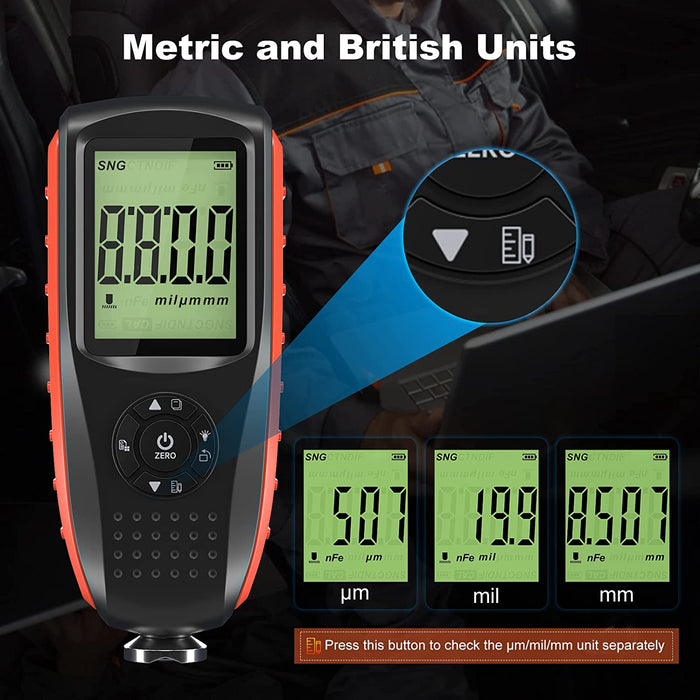

    Press the ""Down Button"" to switch the units as μm, mil, or mm
  • Iron and Aluminum dual-purpose design

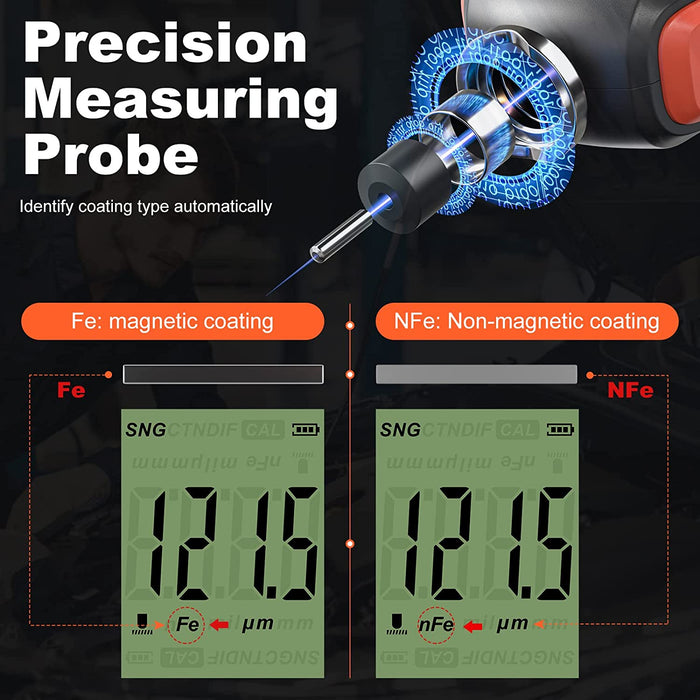

    Automatically identifying the iron or aluminum substrate, the screen quickly displays the substrate material, Fe stands for ferromagnetic substrate, and NF stands for non-ferromagnetic materials, such as aluminum, aluminum alloy, copper, etc. It is widely used in the inspection field of automobile manufacturing, metal processing industry, chemical industry, commodity
  • Built-in Battery + Basic/Zero-Point and Offset Calibration
    Built-in 1000mhA lithium battery, can be re-charged with a USB cable. Just press the calibration button (Left Button) and put the different standard foils in sequence, you can adjust the value by pressing the up/down button to make it the same as the standard foils

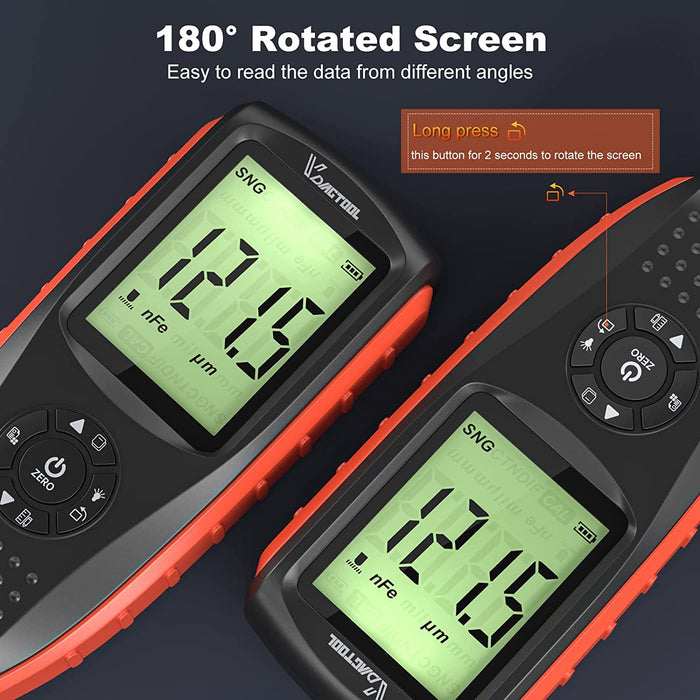

  • HD Display With Backlight + 180° Rotated Screen
    With a digital LCD backlight, this car paint thickness meter can read data clearly in a dark environment. The 180° rotated screen allows you to read the data easily from any angles
  • Parameters
    Measurement Range: 0-1300μm/51mil/1.30mm
    Resolution: 0.1μm/0.01mil (<100μm) | 1μm/0.1mil/0.001mm (≥100μm)
    Measurement Error: ±5μm(≤150μm) | ±(3%H+1μm)(>150 μm)
