VDIAGTOOL VC100 Digital Coating Thickness Gauge, Car Paint Metal Coating Probe Tester

Original price $30.99 - Original price $30.99
Original price
$30.99 - $30.99
Current price $30.99
in stock, ready to be shipped

💰Limited Offer💰

5% OFF Discount Code "XTOOL"


whatsapp: +1 619-988-993
Any problems, email here:, don't send wrong place.



Return: Return for refund within 30 days,buyer pays return shipping. Read detail

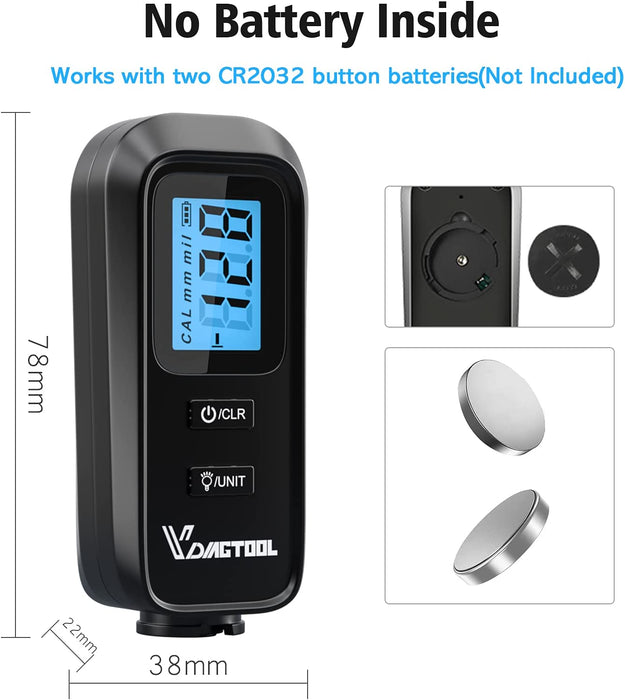

VDIAGTOOL VC100 Digital Coating Thickness Gauge, Car Paint Metal Coating Probe Tester. It's used to measure the thickness of Non-Metallic Coating (such as paint, film, etc.) on metal substrate quickly, non-destructively, and accurately. It is mainly used to measure the thickness of the vehicle's surface paint and other coatings. Help second-hand car buyers to evaluate car accidents. This car paint thickness probe is powered by 2 button batteries which are included in the package. If any questions, please reach out to

  • Vehicles' Coating Tickness Measuring + Vertical 90° Test

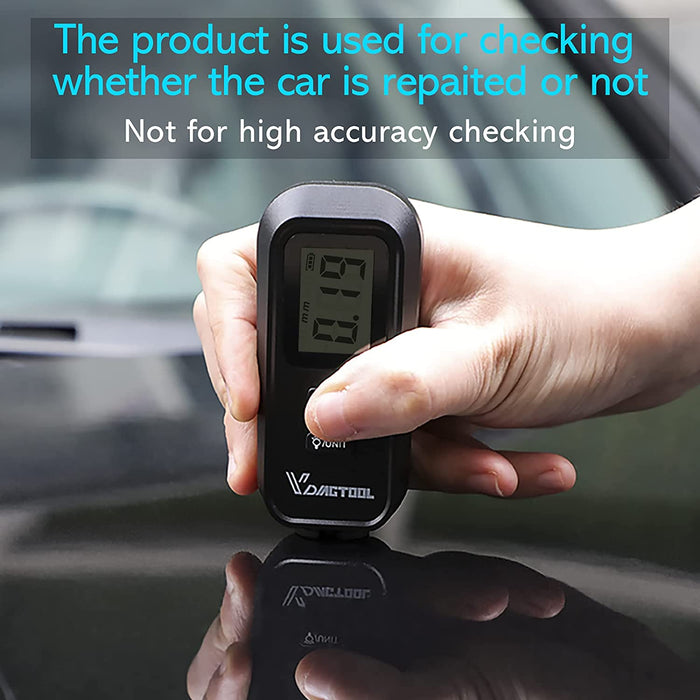

    This portable gauge measures the coating thickness of vehicles. Help second-hand buyers to evaluate if any accidents happen to the car. When measuring, the tester must be perpendicular to the tested surface (90°). Precise Fe & NFe Probe

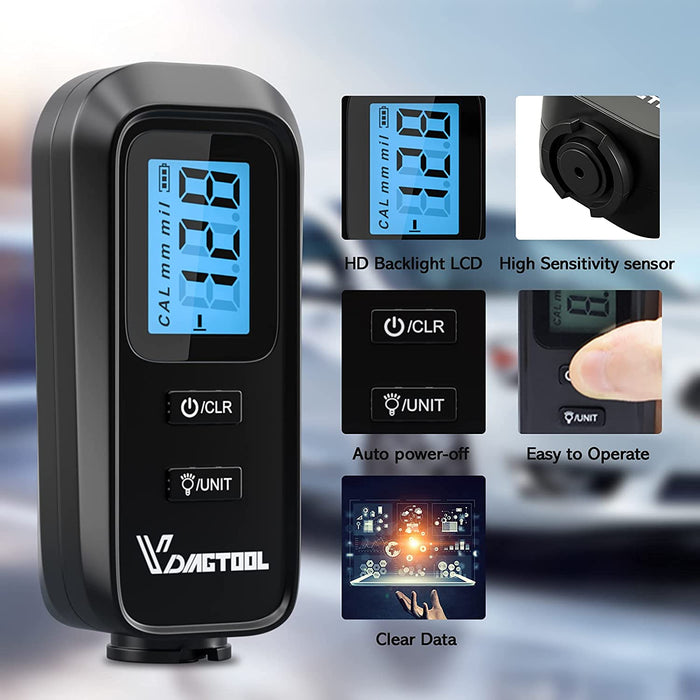

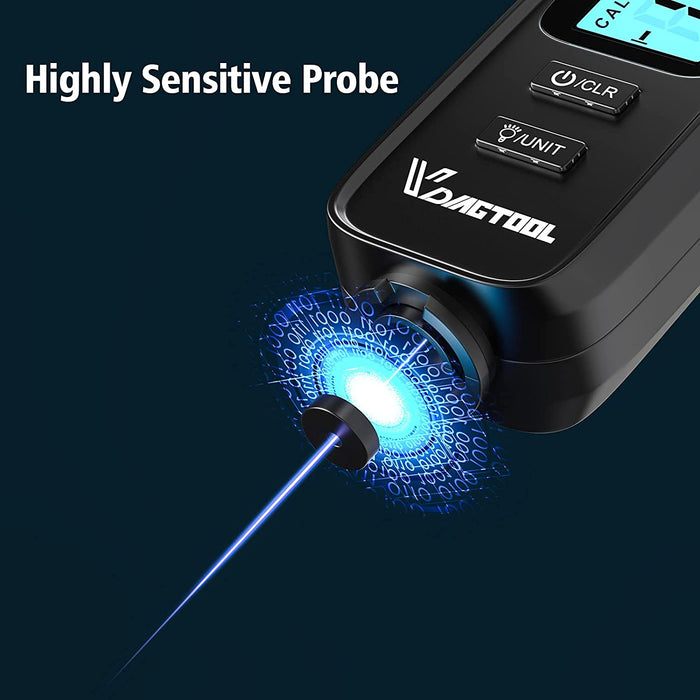

  • HD Backlight Mode + 2 Units Conversion + Highly Sensitive Probe

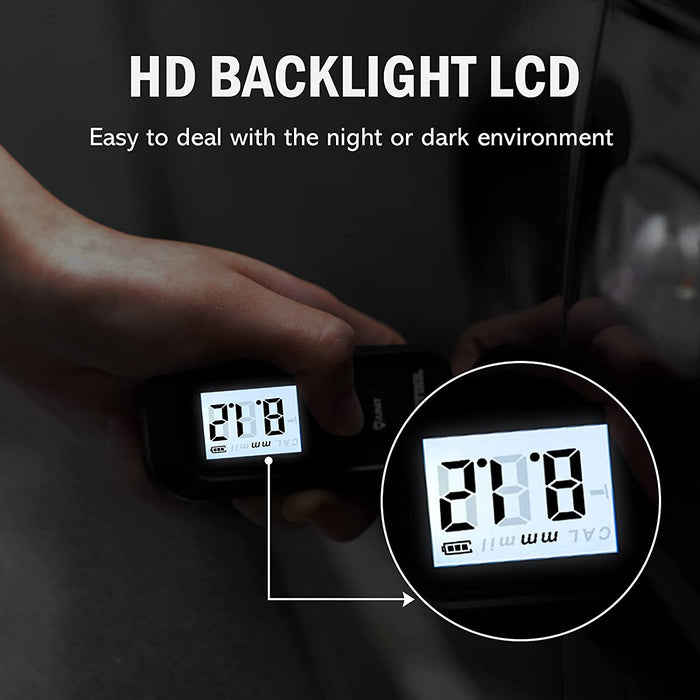

    With a digital LCD backlight, this car paint thickness meter can read data clearly in a dark environment. The measurement unit can be switched between mm and mil to facilitate different requirements. High sensitivity probe makes measurement quickly and accurately
  • Working Principle
    This car paint thickness tester uses the Magnetic Induction Measurement Principle. The thickness of the coating is measured by the magnitude of the magnetic flux flowing, from the probe through the non-ferromagnetic coating into the ferromagnetic substrate
  • Parameters

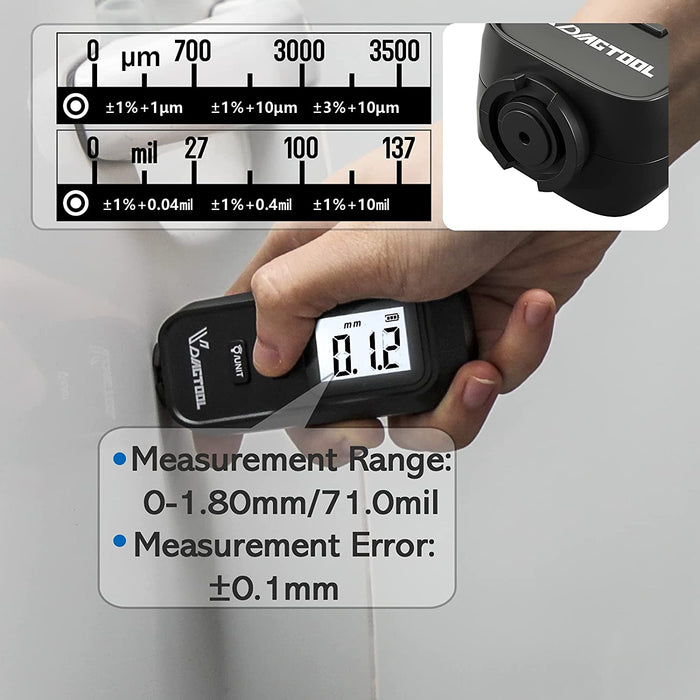

    Measurement Range: 0-1.80mm/71.0milv Resolution: 0.05mm/2mil
    Measurement Error: ±0.1mm
    Minimum Diameter of Substrate: Φ50mm
    Minimum Thickness of Substrate: 0.5mm
    Work Temperature Range: 18-30°C
    Work Humidity Range: 10-80%RH
    Outline Dimension: 1.5*3.43*0.87 inches, 0.14 lb
